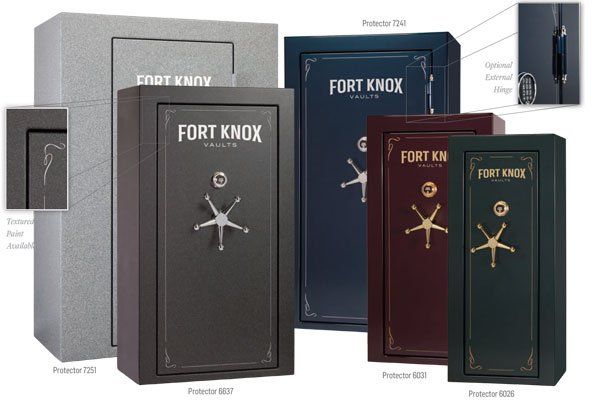

Protector Vaults
With exacting details and precise manufacturing processes, the Protector Vault is what the rest of the industry wishes they could build. The mysteries of vault construction are unveiled with the manufacturing details of the Reinforced Fire Door and all of the industry leading components of the Protector Vault.
Protector Vault Features:
- UL Listed
- Certified, 1680°F in 90 min. inferno fire protection
- 1¾” Reinforced Fire Door (¼” steel plate, 2 layers of fireboard & 10-gauge steel reinforcement)
- Quadrafold™ door frame with recessed door
- 7-gauge thick steel, Unibody construction (1 ½” total body thickness)
- Up to 13–1½” diameter active locking bolts, strategically placed at sides, top & bottom of door
- Remote relocker system
- Drill Deflector Bolt Guard
- EasyGlide™ concealed ball-bearing hinges
- Drill stop hard plate with recessed multi-bearings
- Patented 5 to 1 reduction rack & pinion multi-gear drive locking mechanism
- S&G Group II manipulation resistant lock, spy-proof & key lock dial
- Gold, chrome or black chrome plated 5 spoke Clutch Drive Handle
- Available in texture or high gloss finish
- Velcro compatible carpeted interior, including side walls
- Remote Relocker
- Limited lifetime warranty
- Bolt Detent
- Internal power supply
- Door organizer standard
- Two tone interior
- MADE IN THE USA
| MODEL | HEIGHT | WIDTH | VOLUME | DEPTH/OVERALL | WEIGHT | 1½" LOCKING BOLTS |
|---|---|---|---|---|---|---|
| PROTECTOR 7261 | 72.5" | 61" | 69 CU. FT. | 27" / 30" | 1805 LBS | 13 |
| PROTECTOR 7251 | 72.5" | 51" | 57 CU. FT. | 27" / 30" | 1645 LBS | 13 |
| PROTECTOR 7241 | 72.5" | 41" | 45 CU. FT | 27" / 30" | 1495 LBS | 13 |
| PROTECTOR 6637 | 66.5" | 37" | 36 CU. FT. | 27" / 30" | 1240 LBS | 11 |
| PROTECTOR 6031 | 60.5" | 31" | 28 CU. FT. | 27"/30" | 985 LBS | 11 |
| PROTECTOR 6026 | 60.5" | 26" | 16 CU. FT. | 20"/23" | 705 LBS | 11 |
| PROTECTOR 4026 | 40.0" | 26" | 10 CU. FT. | 20"/23" | 510 LBS | 11 |
